Midi 63A

Description

The Poly Midi 63A is one of our most popular free-standing units. With a versatile combination of outlets and a 415V 63A Ceeform inlet, this board is great for when you need to pull a whole lot of power. Ideal for minesites, construction sites and processing plants, this unit is rugged and sturdy. We also offer 32A and 100A Poly Midi units, as well as our original rubber boards.

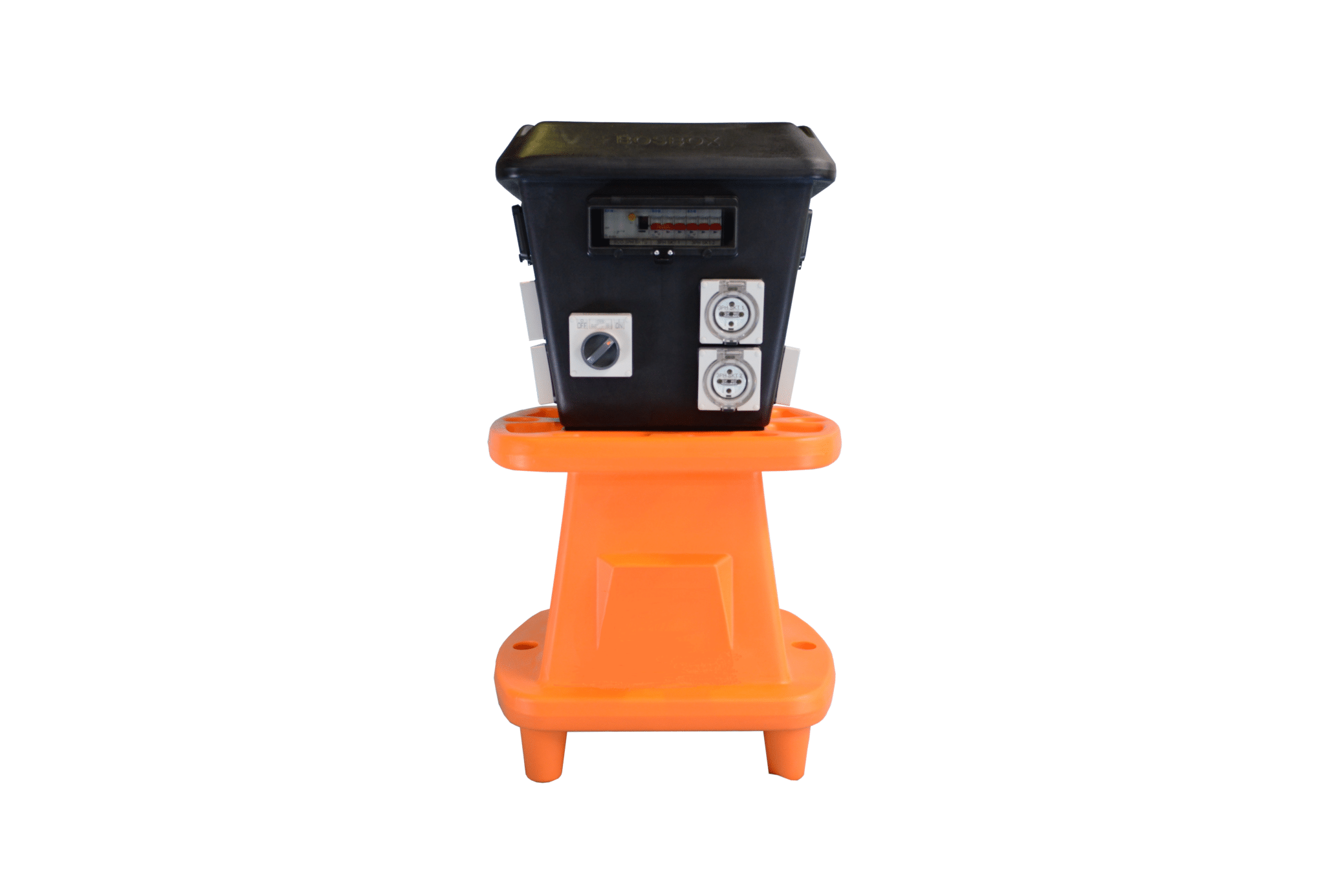

SIDE A

  • 1 x 63A 4 pole main switch
  • 2 x 32A 5 pin 415V IP66 outlets
  • 1 x 63A 4 pole RCD for 32A outlets
  • 2 x 32A 3 pole circuit breakers for 32A outlets

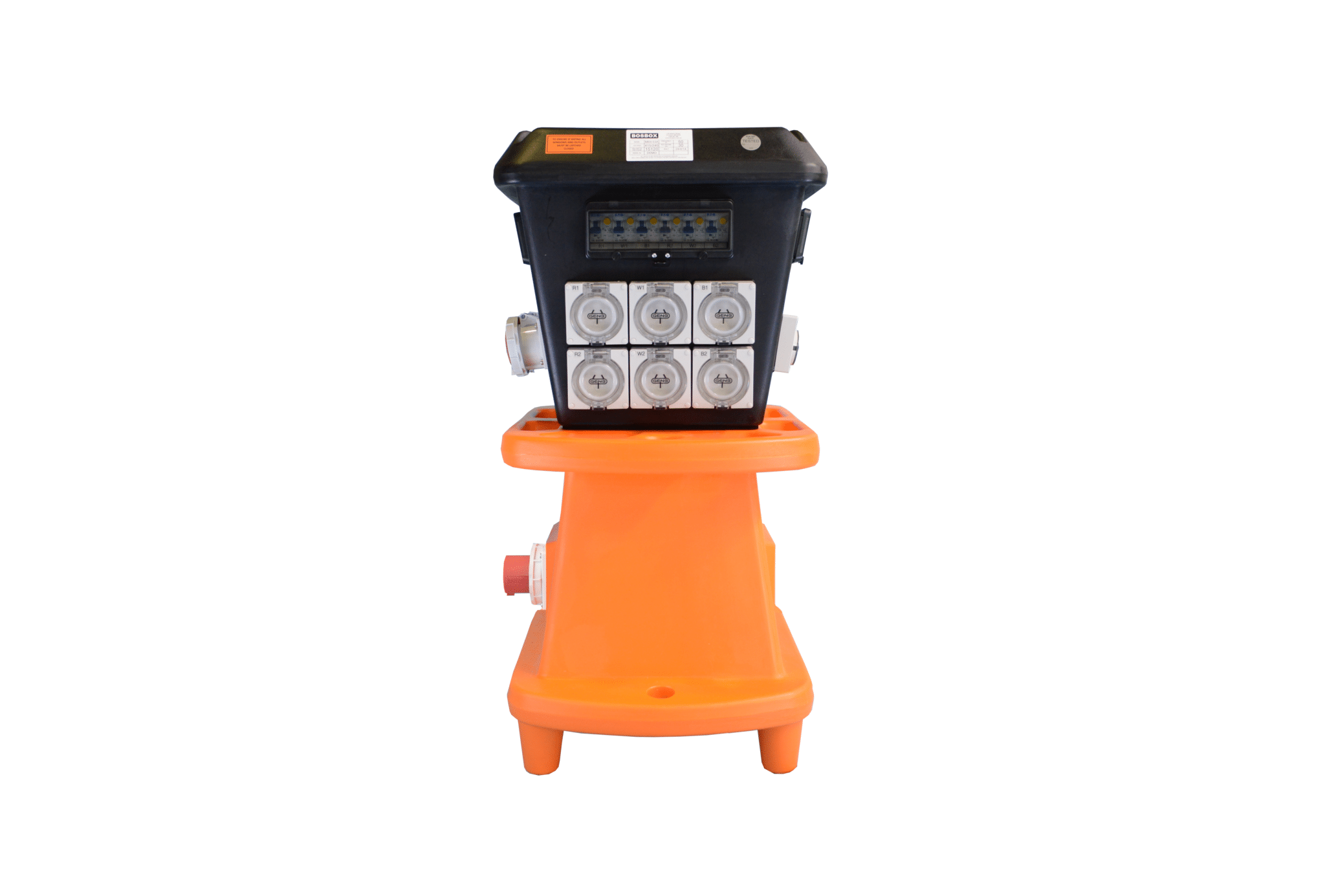

SIDE B

  • 6 x 15A 240V auto switched IP66 outlets
  • 6 x 16A RCBOs for 15A outlets

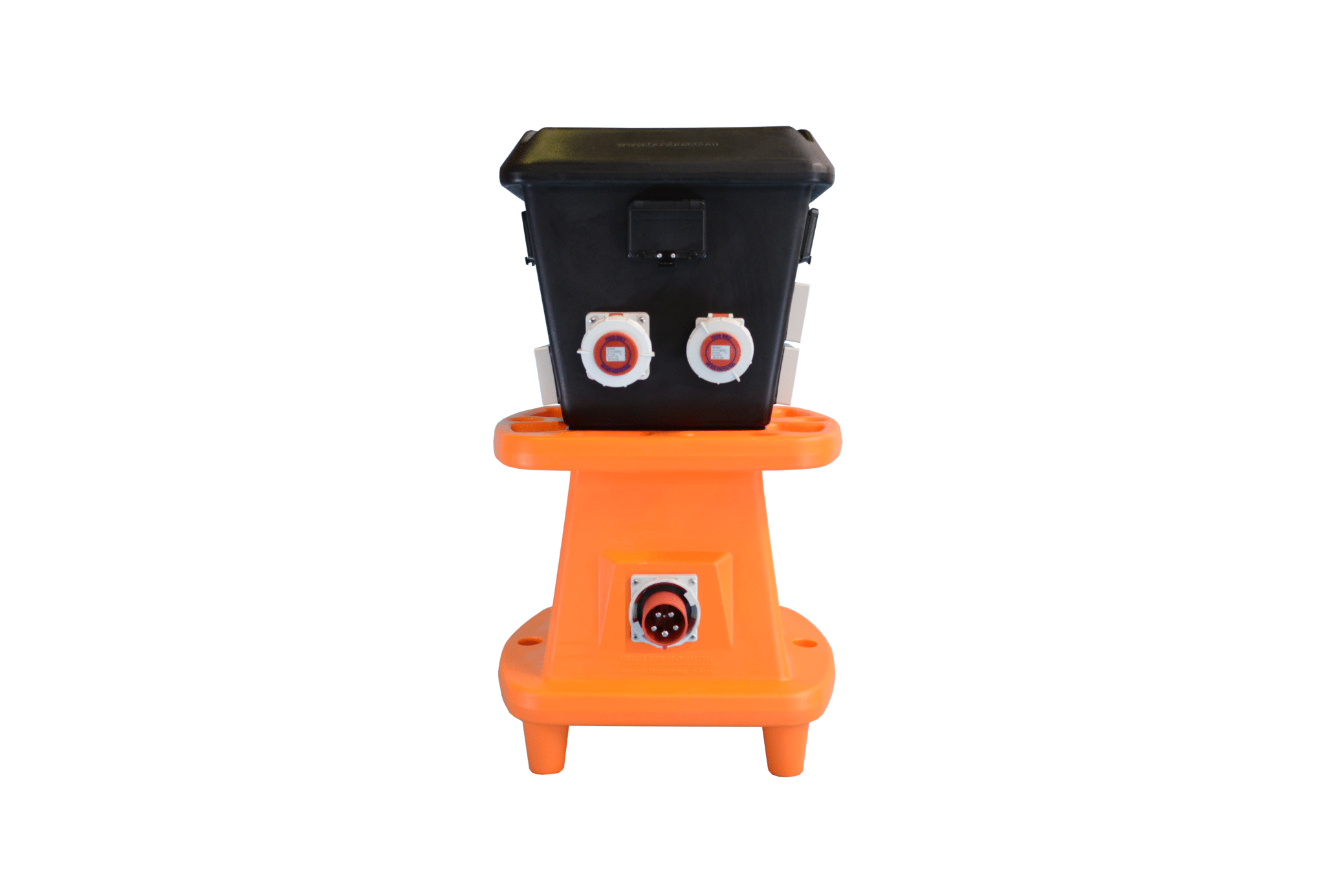

SIDE C

  • 1 x 63A 3 pole main c/breaker
  • 1 x 63A 5 pin 415V ceeform outlet (feed out no RCD)
  • 1 x 63A 3 pole circuit breaker for 63A feed out
  • 1 x 32A 5 pin 415V ceeform outlet (feed out no RCD)
  • 1 x 32A 3 pole circuit breaker for 32A feed out
  • 1 x 63A 5 pin 415V ceeform inlet

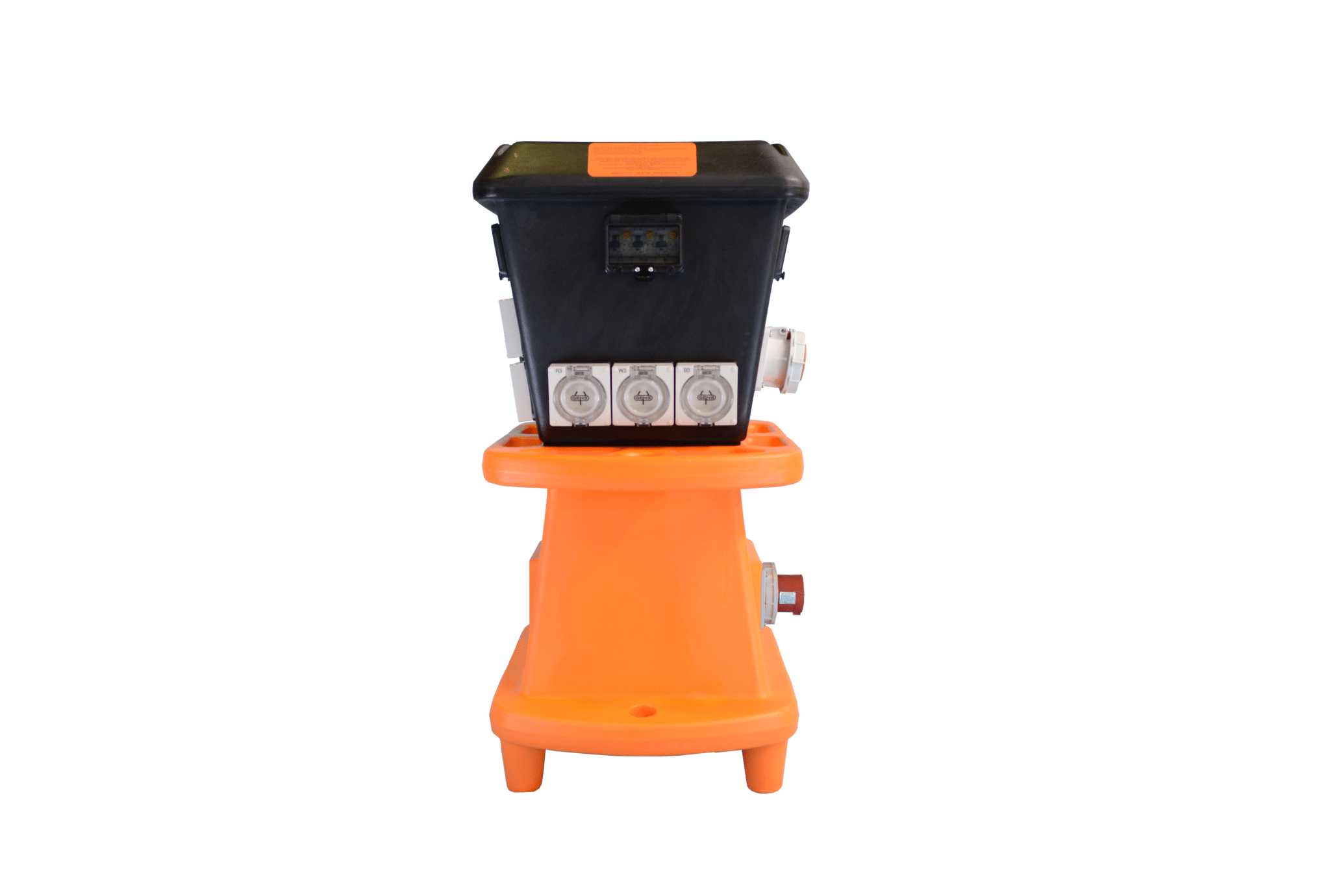

SIDE D

  • 3 x 15A 240V auto switched IP66 outlets
  • 3 x 16A RCBOs for 15A outlets

Additional information

Weight 40 kg
Dimensions 51 × 59 × 103 cm
Inlet Voltage

415V

Inlet Current

63A

Outlet Voltage(s)

415V, 240V

Outlet Current(s)

63A, 32A, 15A
