Midi 100A

Description

When you need grunt, and you need it to be portable – the Midi 100A is the unit for you. This free-standing board boasts a variety of 240V & 415V outlets, and comes with two terminals per phase fitted inside the base for your incoming power supply. The second largest of our Poly range (behind the Poly Maxi) the Midi 100A is a crowd favourite when you need to supply a lot of power in one go safely.

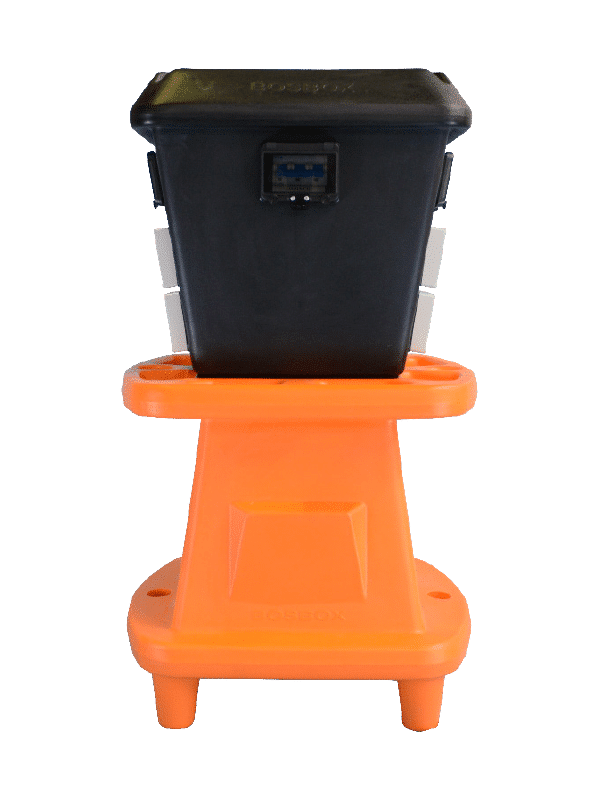

SIDE A

  • 1 x 100A 3 pole main circuit breaker

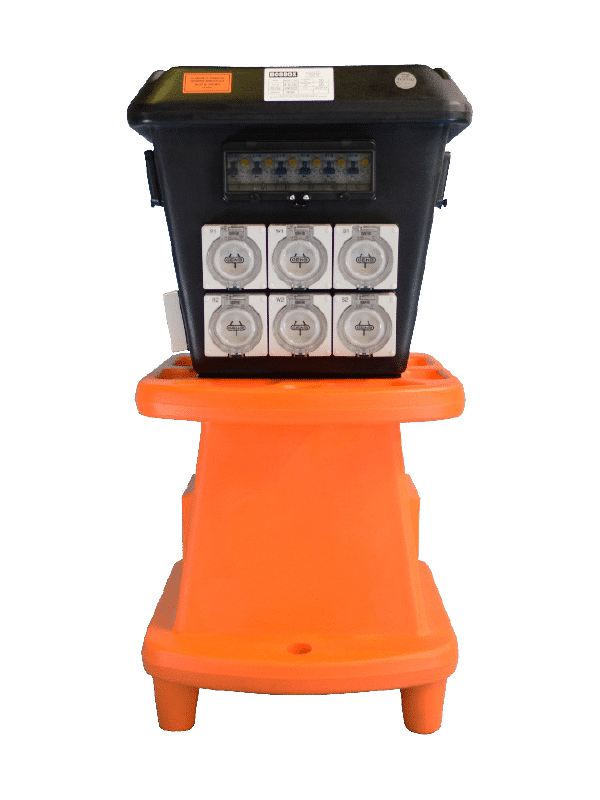

SIDE B

  • 6 x 15A 240V auto switched IP66 outlets
  • 6 x 16A RCBOs for 15A outlets

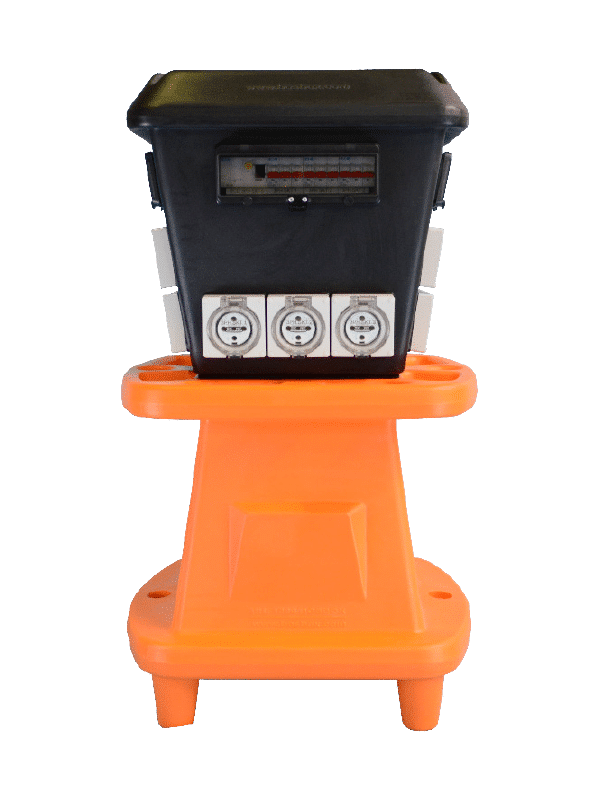

SIDE C

  • 3 x 32A 5 pin 415V IP66 outlets
  • 1 x 100A 4 pole RCD for 32A outlets
  • 3 x 32A 3 pole circuit breakers for 32A outlets

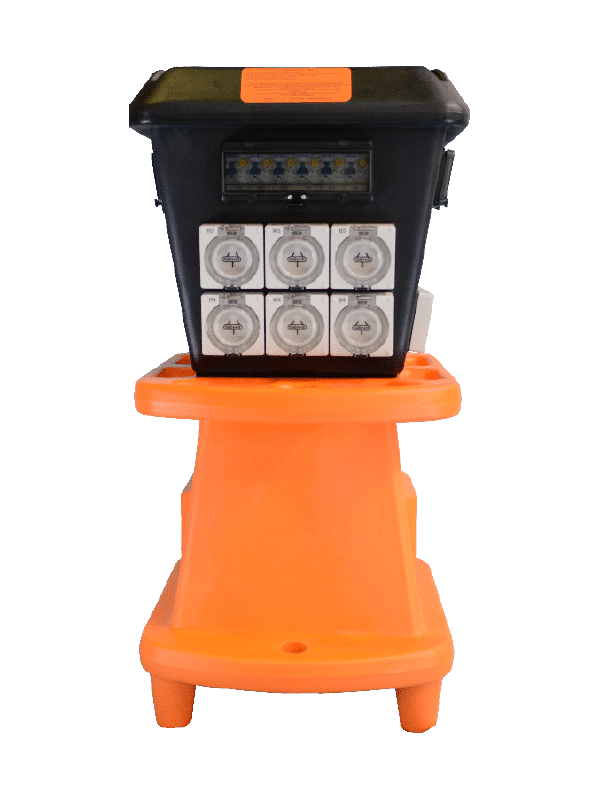

SIDE D

  • 6 x 15A 240V auto switched IP66 outlets
  • 6 x 16A RCBOs for 15A outlets

FEATURES

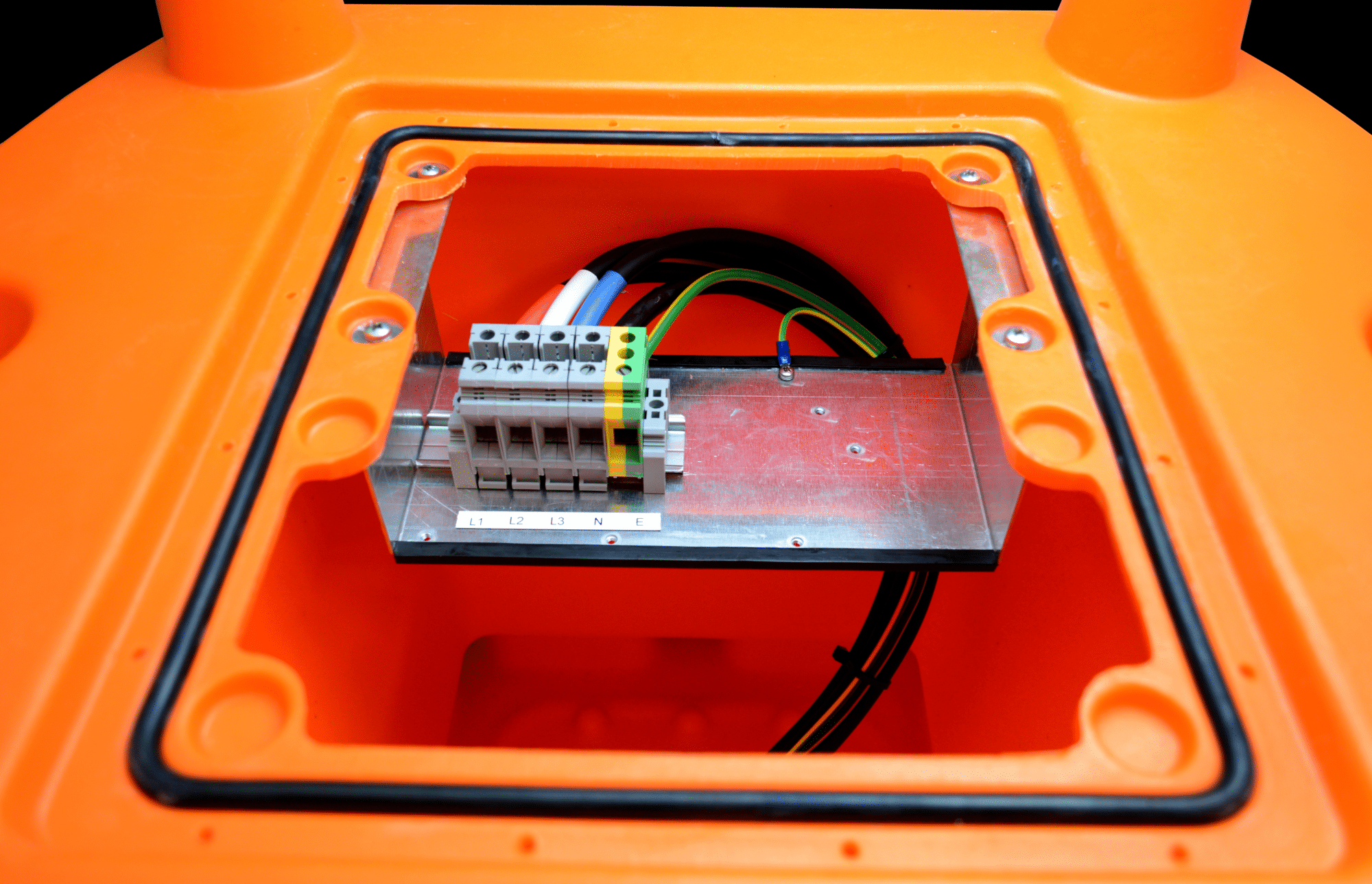

  • 2 x 35mm terminals per phase fitted inside base for incoming supply

Additional information

Weight 40 kg
Dimensions 51 × 59 × 103 cm
Inlet Voltage

415V

Inlet Current

100A

Outlet Voltage(s)

415V, 240V

Outlet Current(s)

32A, 15A
