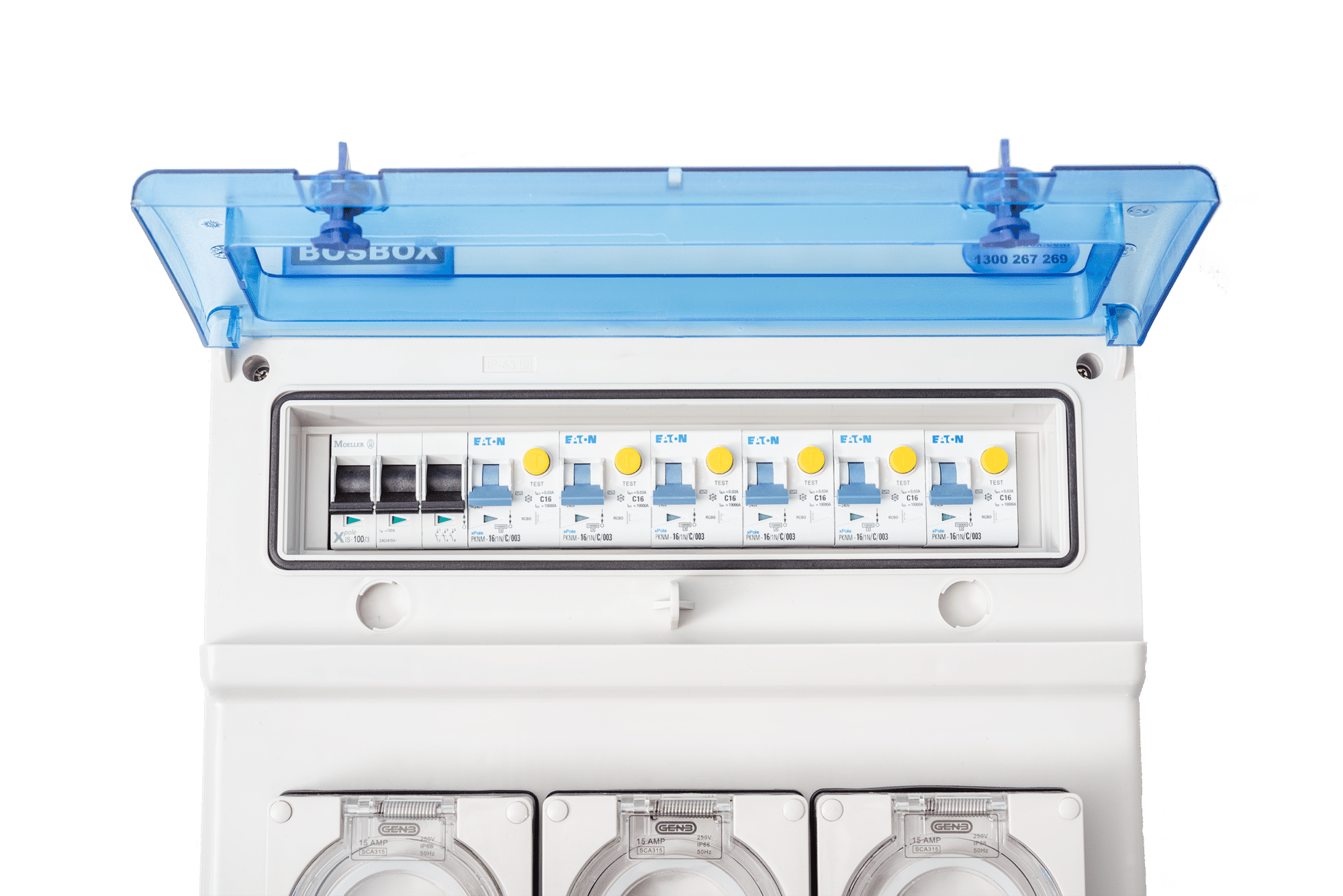

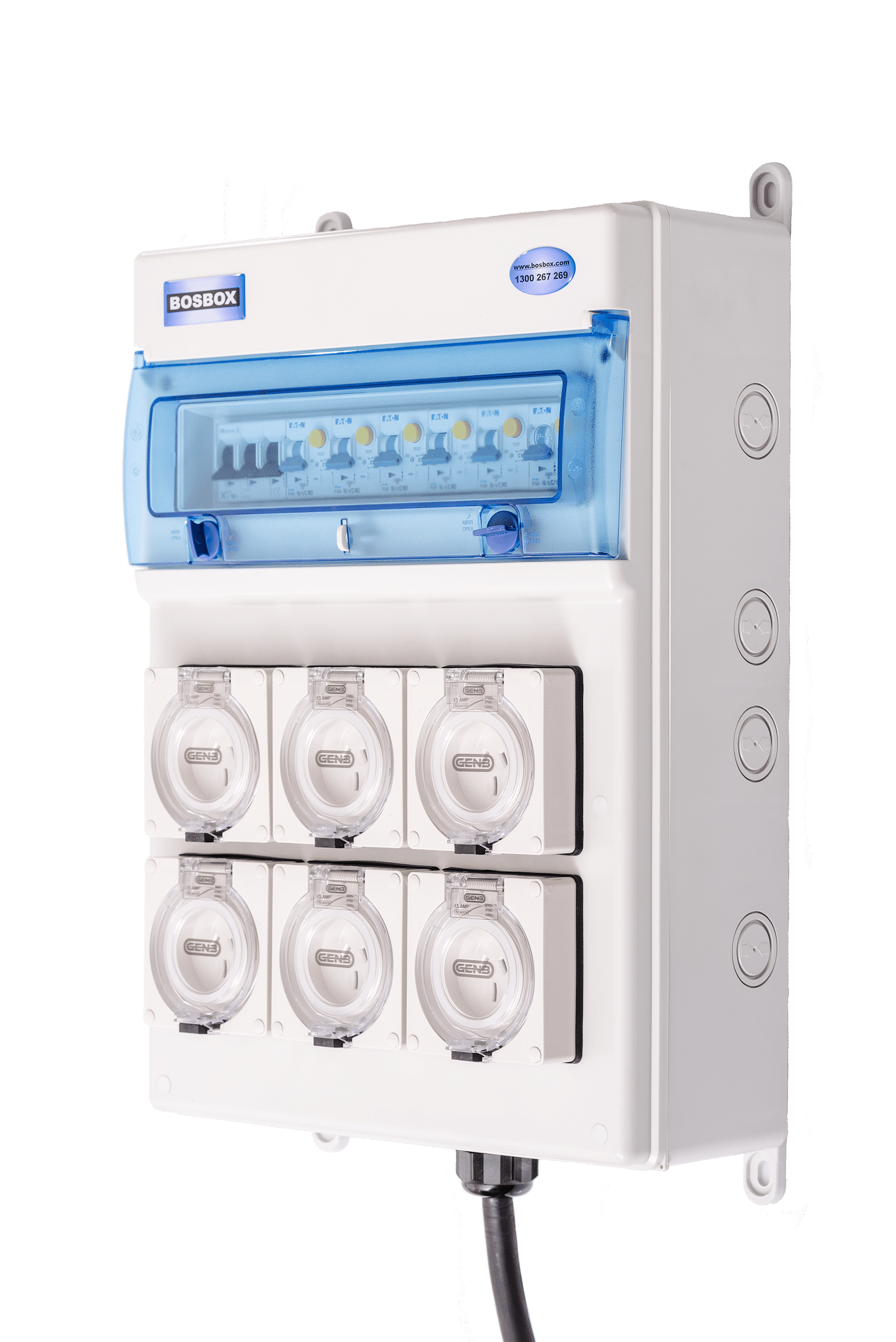

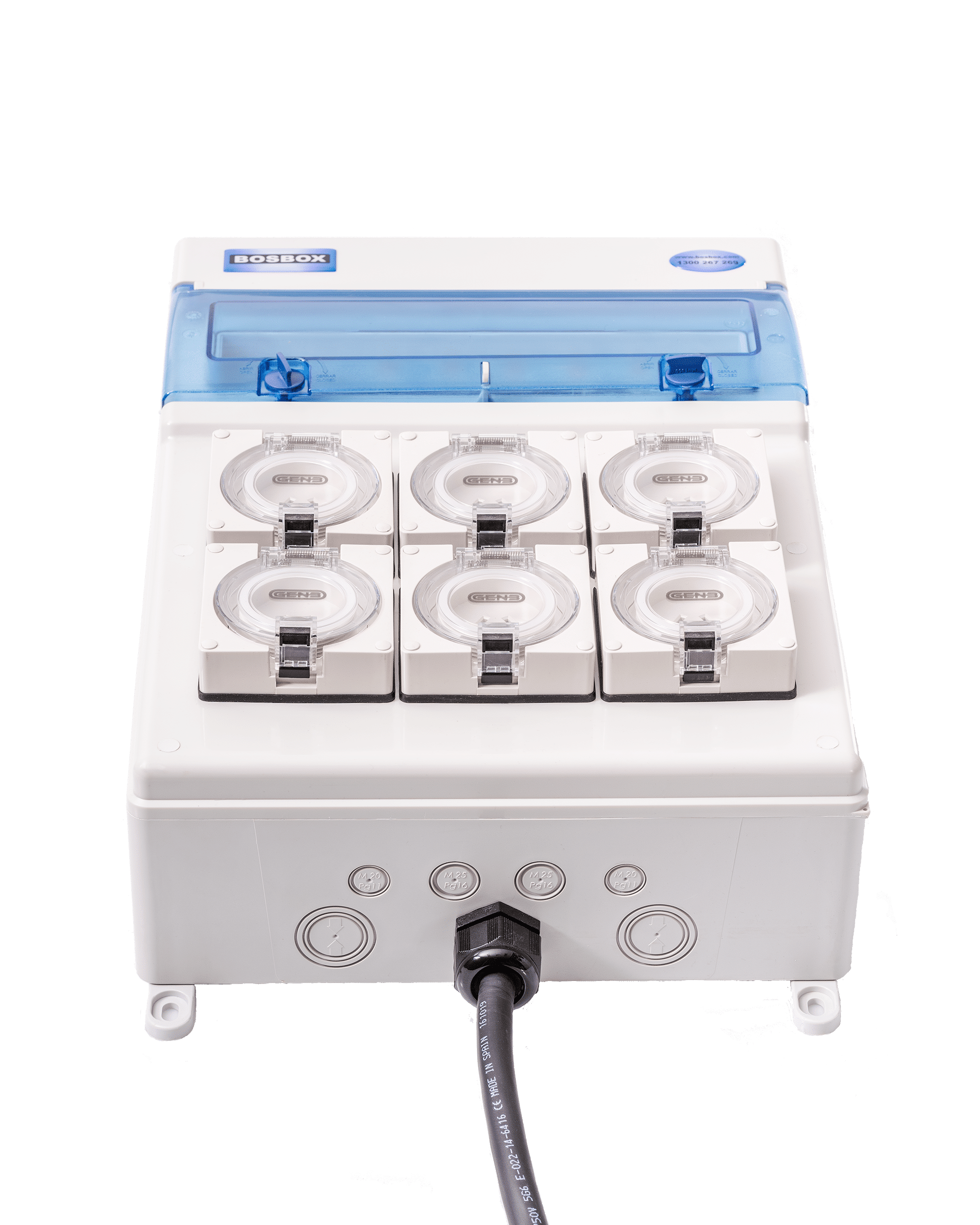

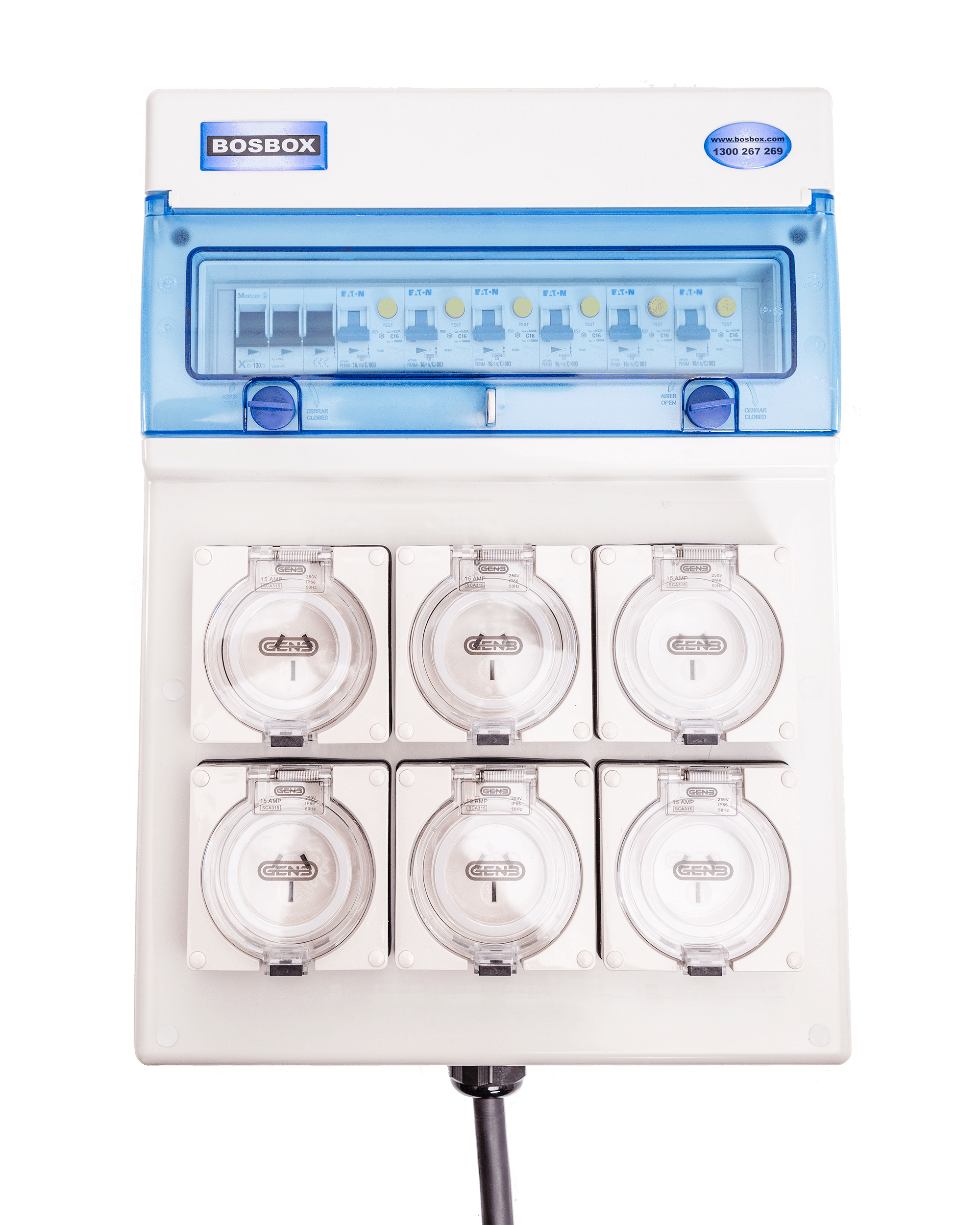

Wallmount 300S


When you only have a 32amp 3 phase outlet and need multiple 15amp 240v rcd protected outlets this board is the one. Just mount it on the wall and plug it in.

Not quite what you’re after? Check out our full range of wall-mounted power distribution boards or head to our Custom Bosbox® builder and design your own!

Standard model includes:

  • 6 x 15A 3 pin 240v auto switched IP66 outlets
  • 6 x 16A 30mA rcbo’s
  • 1 x 32amp 3 pole main c/breaker
  • 1.8m of 6mm 5 core rubber cable
  • 32A 5 pin 415V IP66 plug
  • Rated IP65

Additional information

Weight 8 kg
Dimensions 50 × 36 × 18 cm
Inlet Voltage


Inlet Current


Outlet Voltage(s)


Outlet Current(s)
