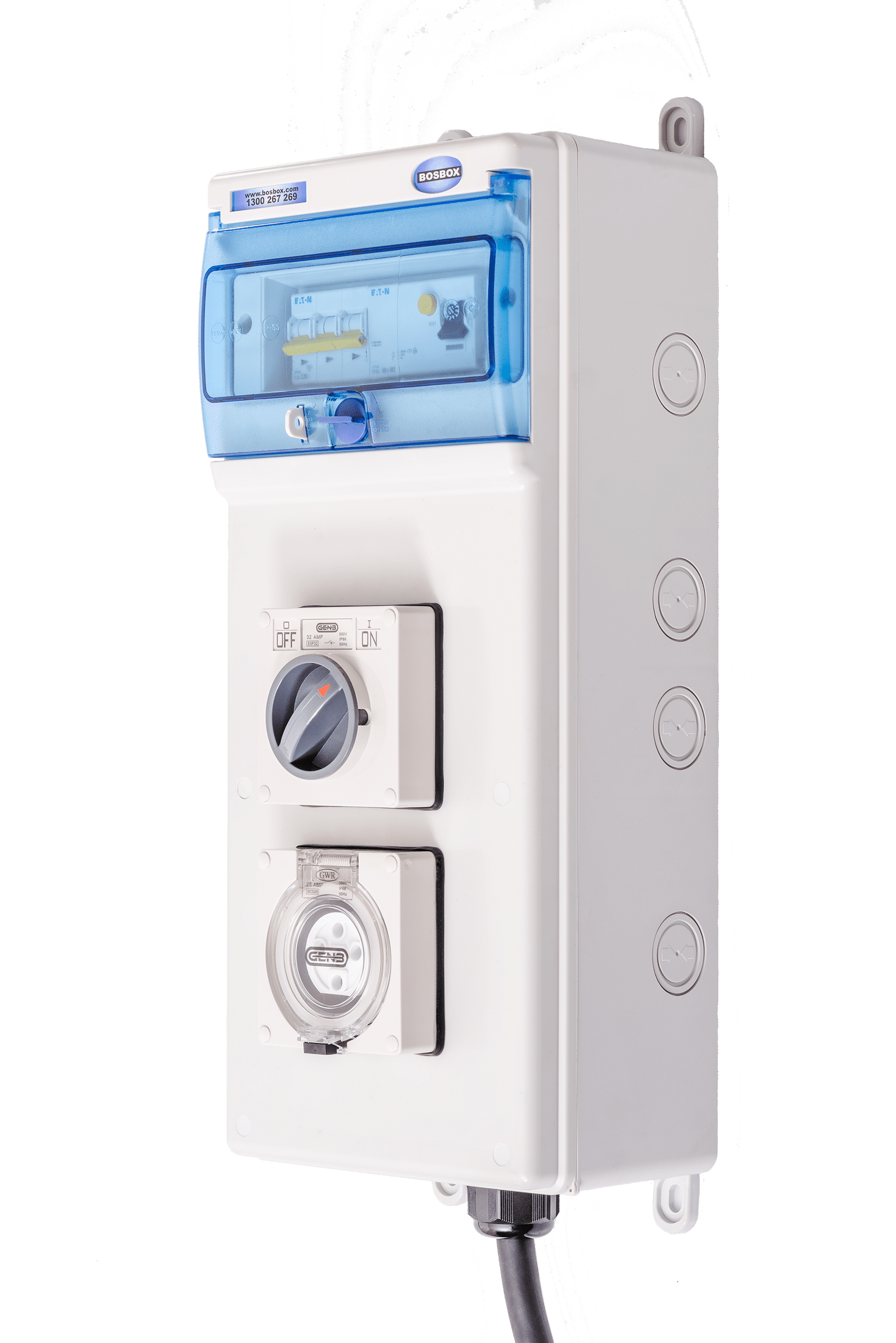

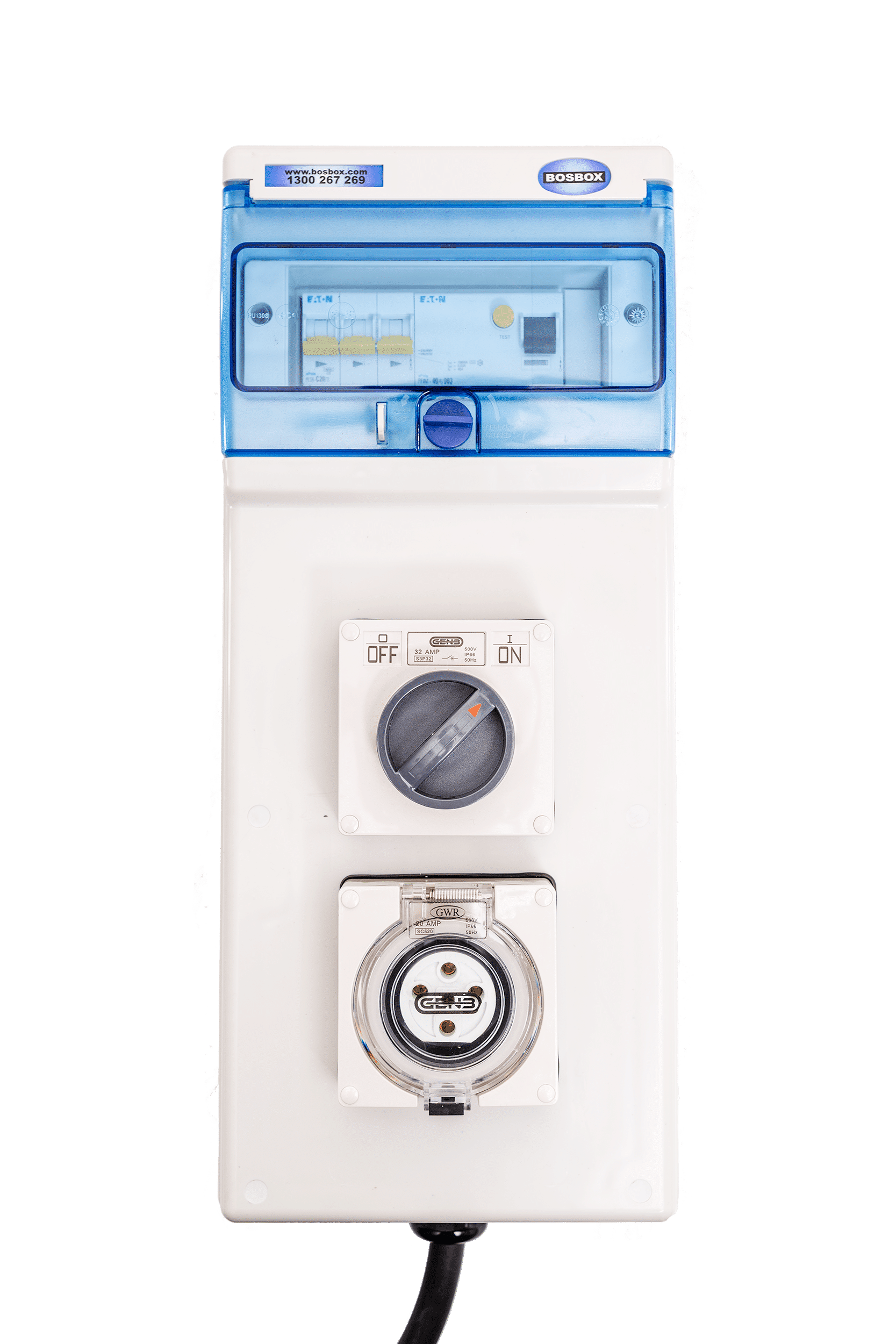

Wallmount 100S

Description

When you only have a 32amp 3 phase outlet and need a 20amp rcd protected outlet this board is the one. Just mount it on the wall and plug it in.

Not quite what you’re after? Check out our full range of wall-mounted power distribution boards or head to our Custom Bosbox® builder and design your own!

Standard model includes:

  • 1 x 20A 5 pin 415v switched IP66 outlet

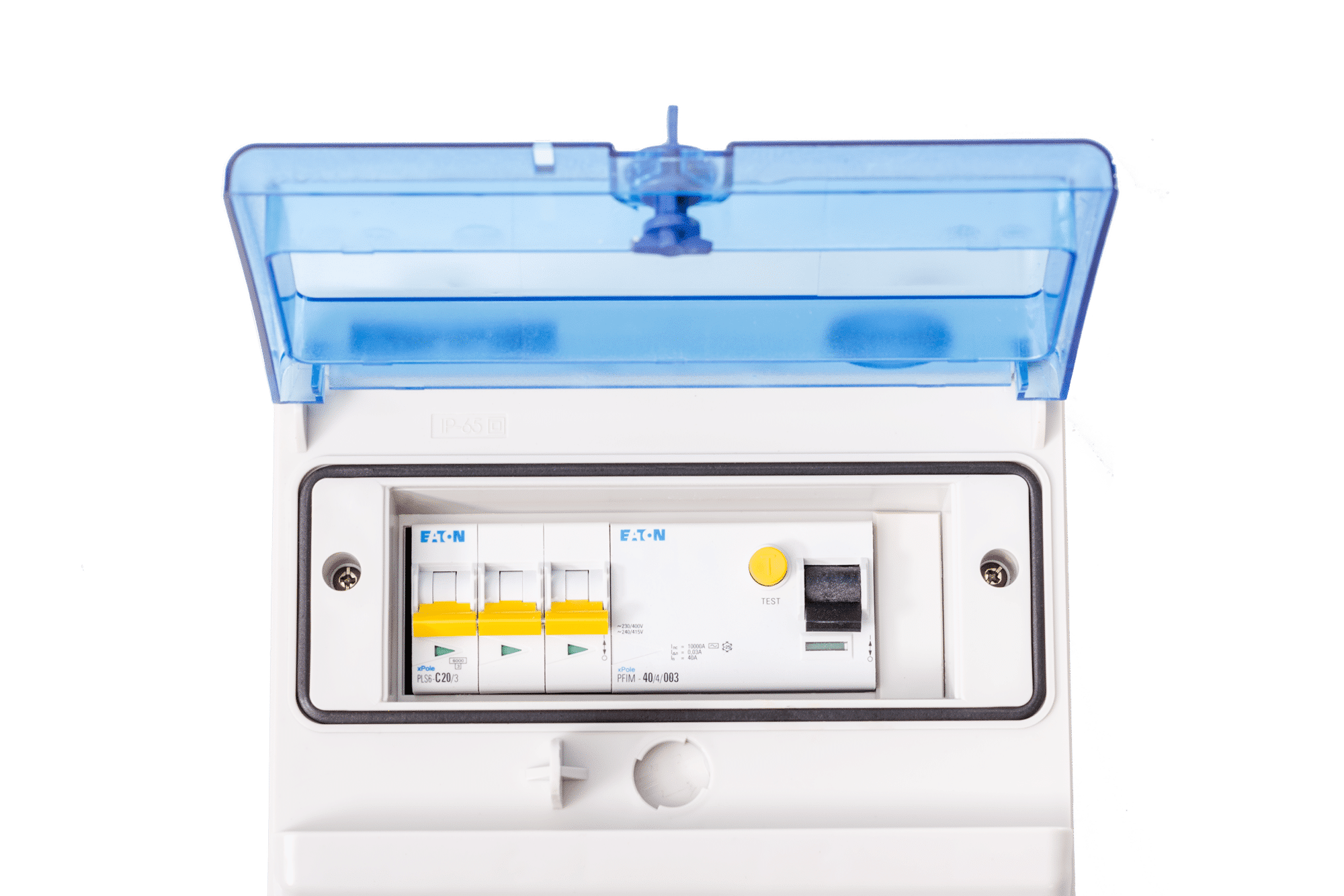

  • 1 x 40A 30mA 4 pole rcd
  • 1 x 20A 3 pole c/breaker

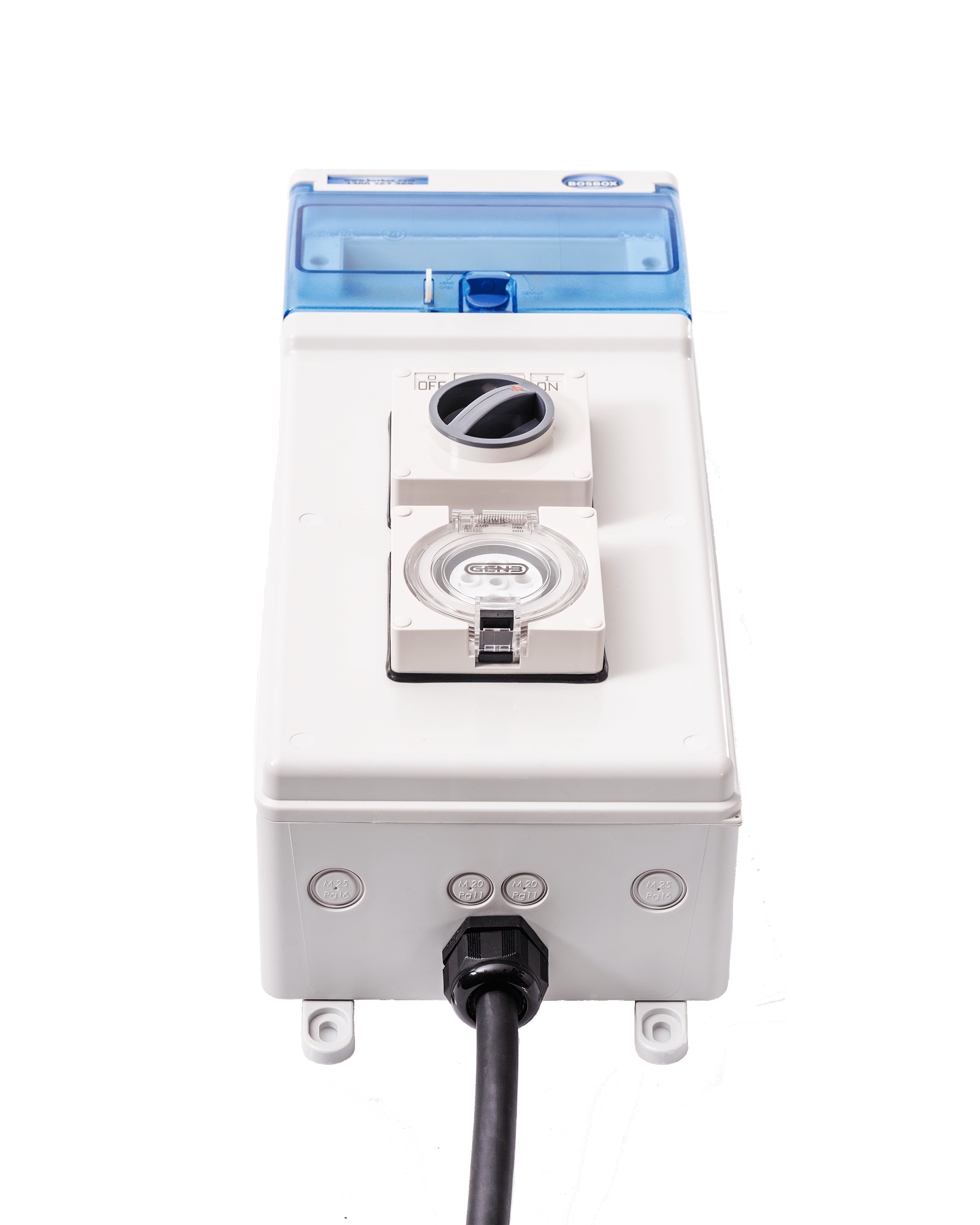

  • 1.8m of 6mm 5 core rubber cable
  • 32A 5 pin 415V IP66 plug
  • Rated IP65

Additional information

Weight 6 kg
Dimensions 50 × 21.5 × 18 cm
Inlet Voltage

415V

Inlet Current

32A

Outlet Voltage(s)

415V

Outlet Current(s)

20A
