Description

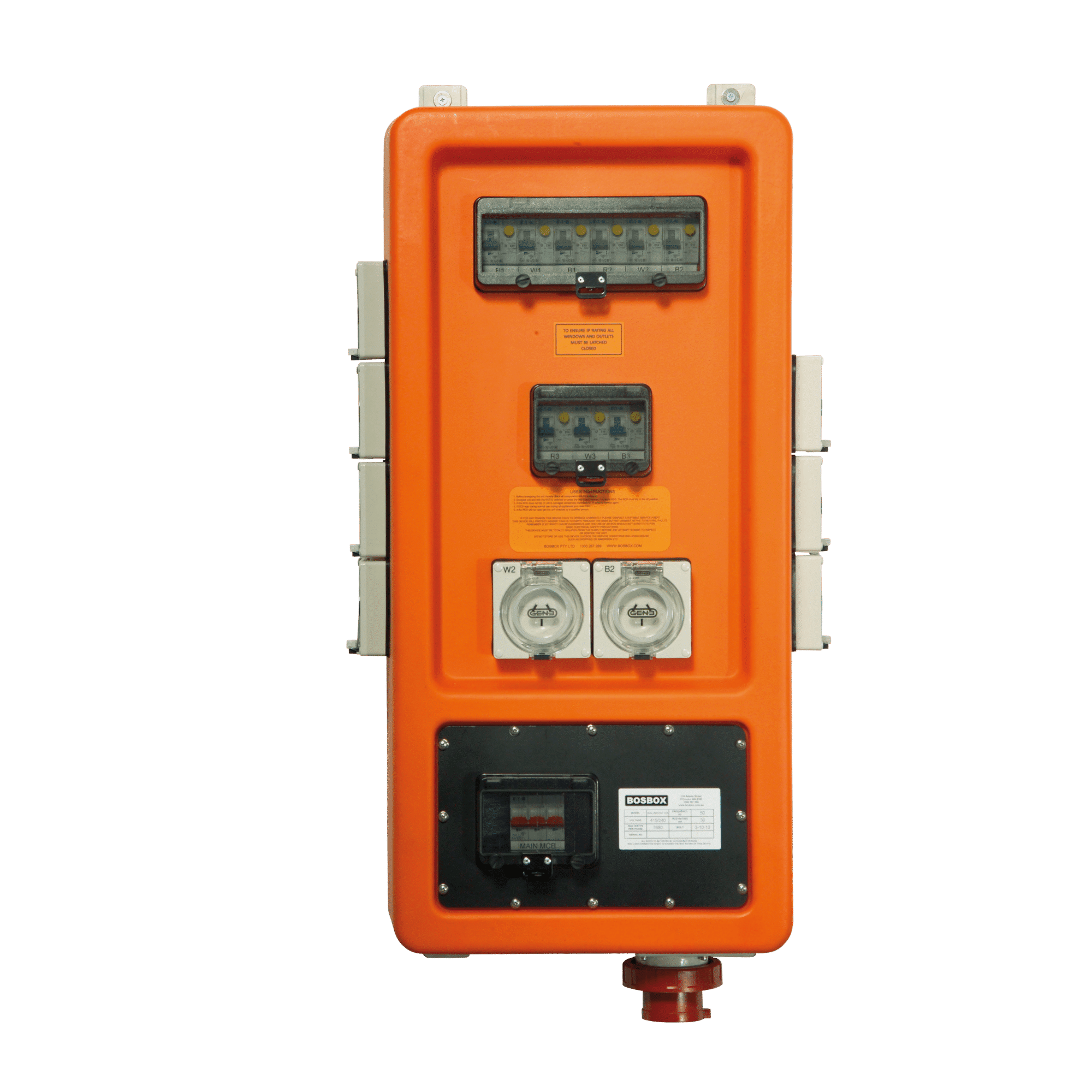

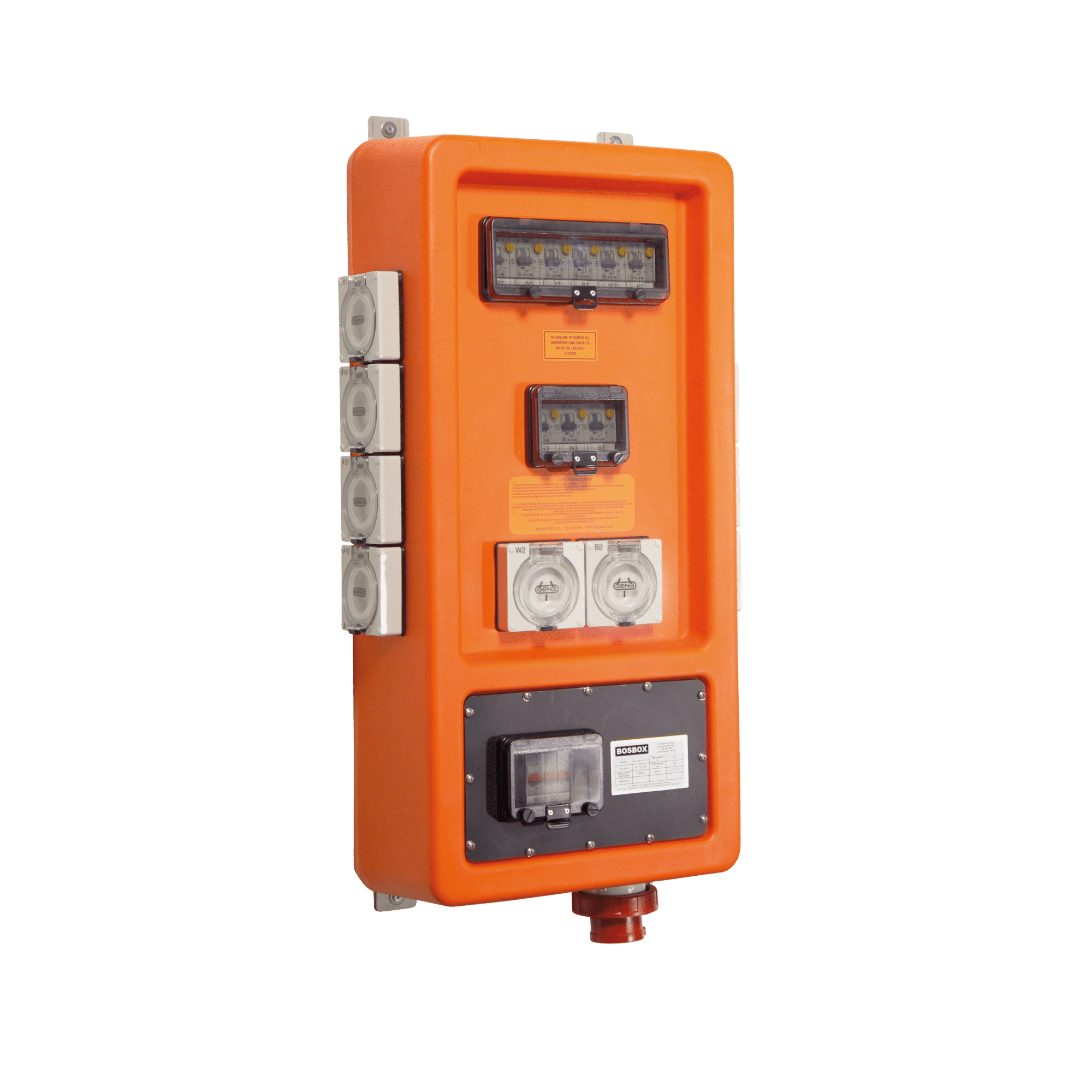

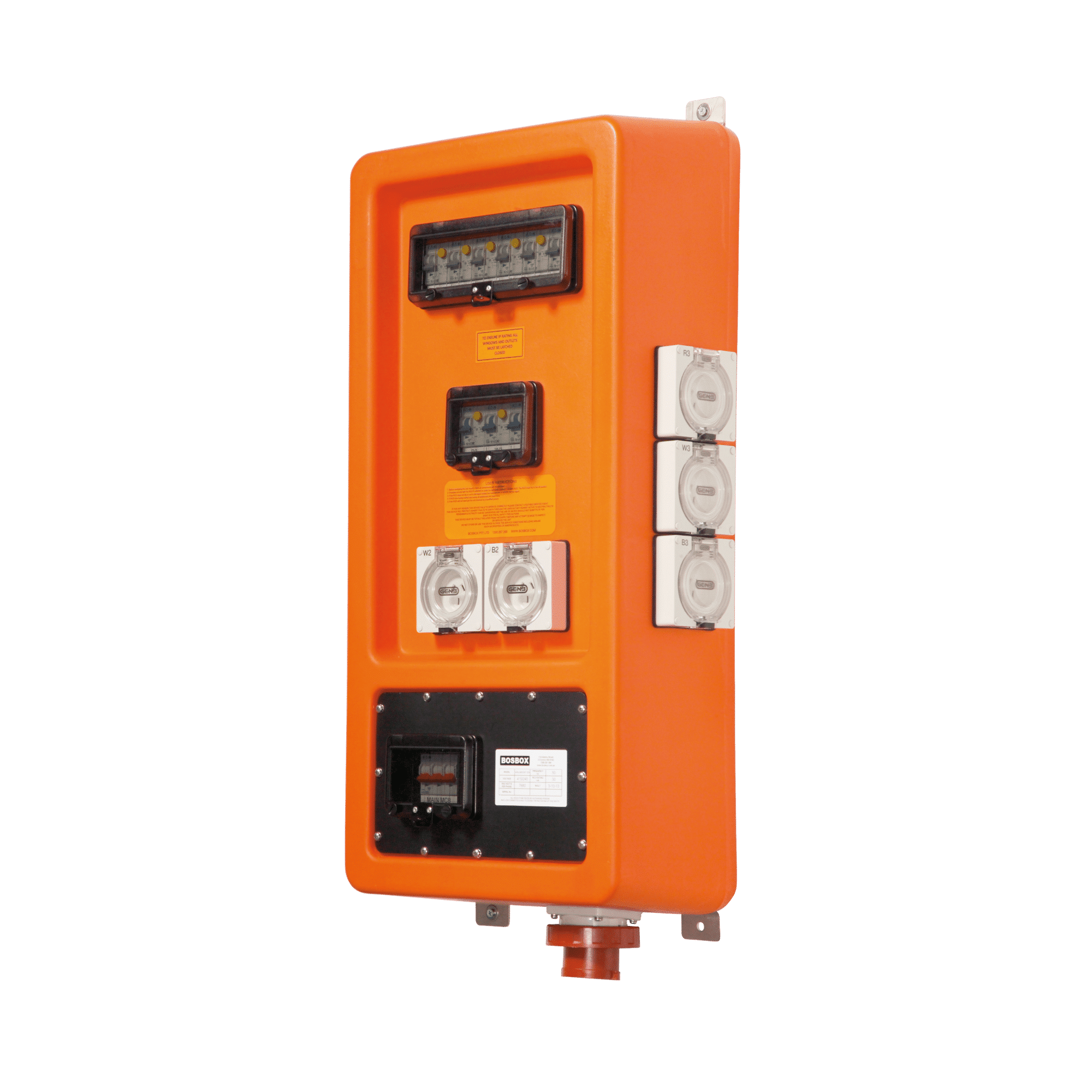

The 32A wall mounted unit is ideal when you need a compact portable power solution you can easily keep off the ground. With an IP67 rated ceeform inlet and nine IP66 outlets at your disposal, the Wall 32A is as rugged as they come. Able to handle splashes, bumps and dusty environments, this unit offers a neat and convenient power solution. Need something a bit bigger? Check out our full range of wall mounted boards or customise one to fit your needs.

Standard model includes:

  • 1 x 32A 5 pin IP67 ceeform inlet
  • 1 x 32A 3 pole main circuit breaker
  • 6 x 10A 240V auto switched IP66 outlets
  • 3 x 15A 240V auto switched IP66 outlets
  • 6 x 10A RCBOs (for 10amp outlets)
  • 3 x 16A RCBOs (for 15amp outlets)

Additional information

Weight 15 kg
Dimensions 48 x 23 x 95 cm
Inlet Voltage

415V

Inlet Current

32A

Outlet Voltage(s)

240V

Outlet Current(s)

10A, 15A
