Bigga

Description

When you’re looking for something a little bigger, the Bigga might just be what you’re after. While still only weighing in at a very manageable 20kg, the Bigga boasts a range of features and optional extras.

Not quite what you need? Why not check out or Custom Bosbox builder and create something that meets your needs exactly!

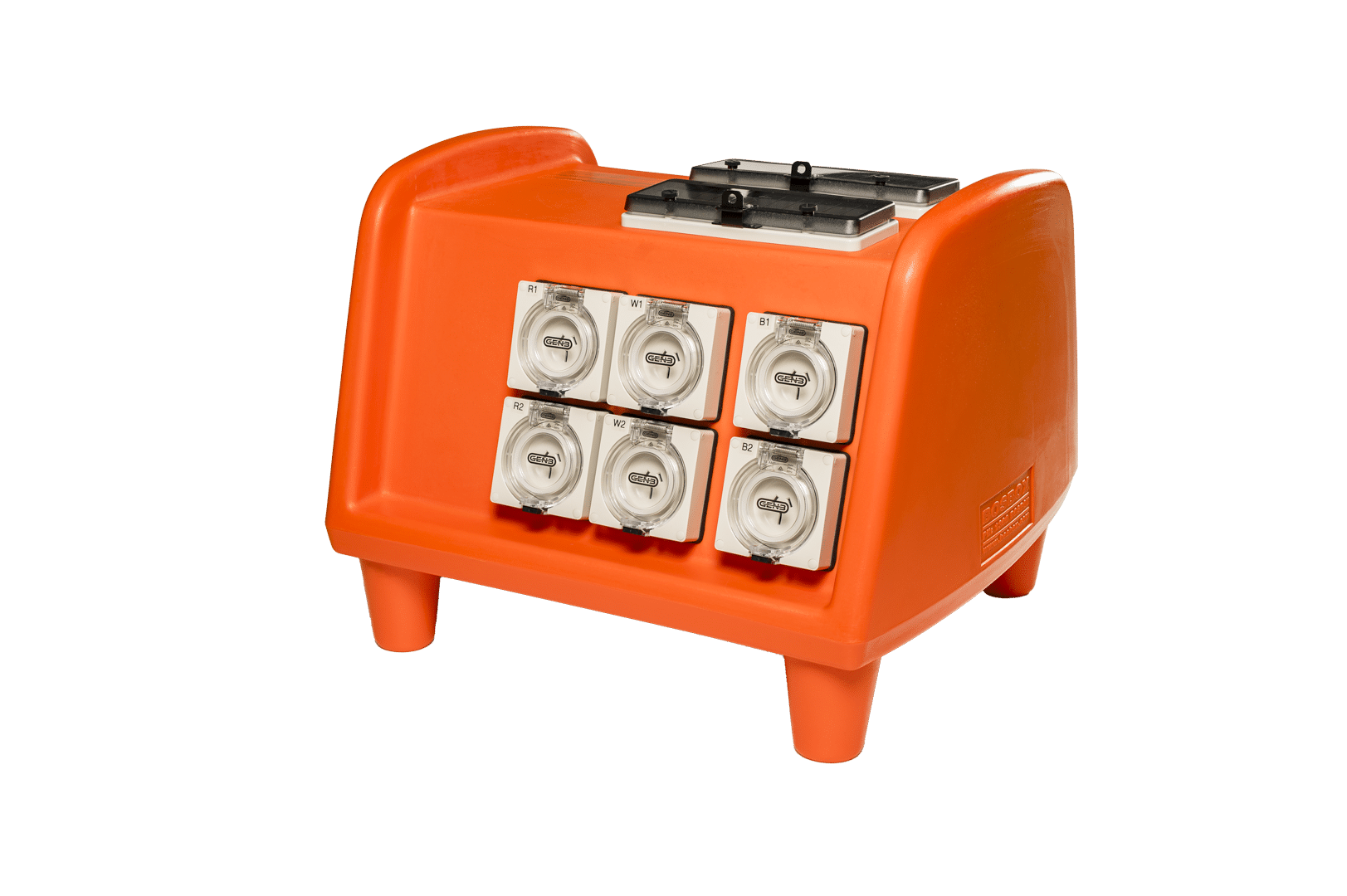

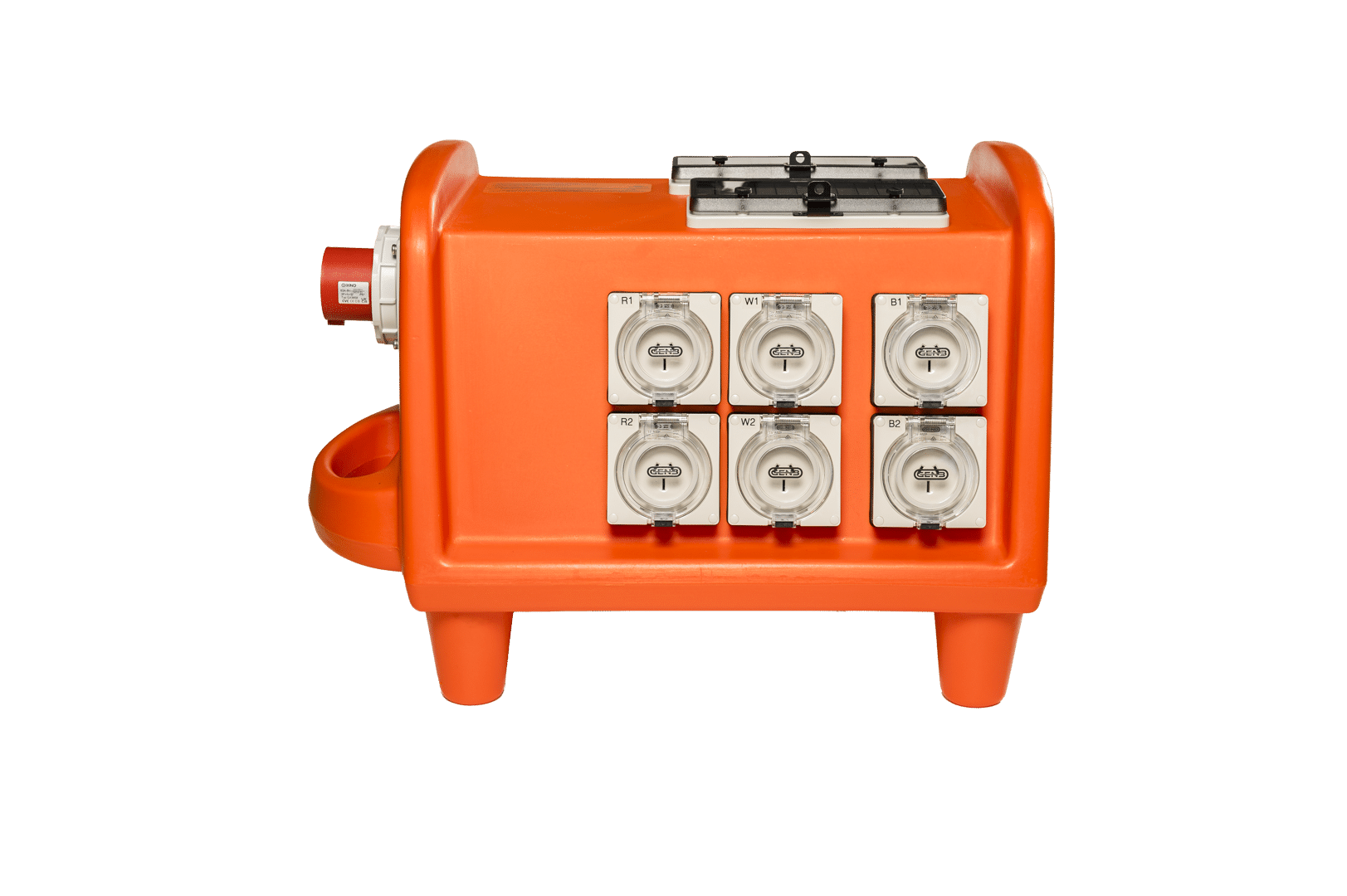

SIDE A

  • 6 x 15A 240V auto switched IP66 outlets

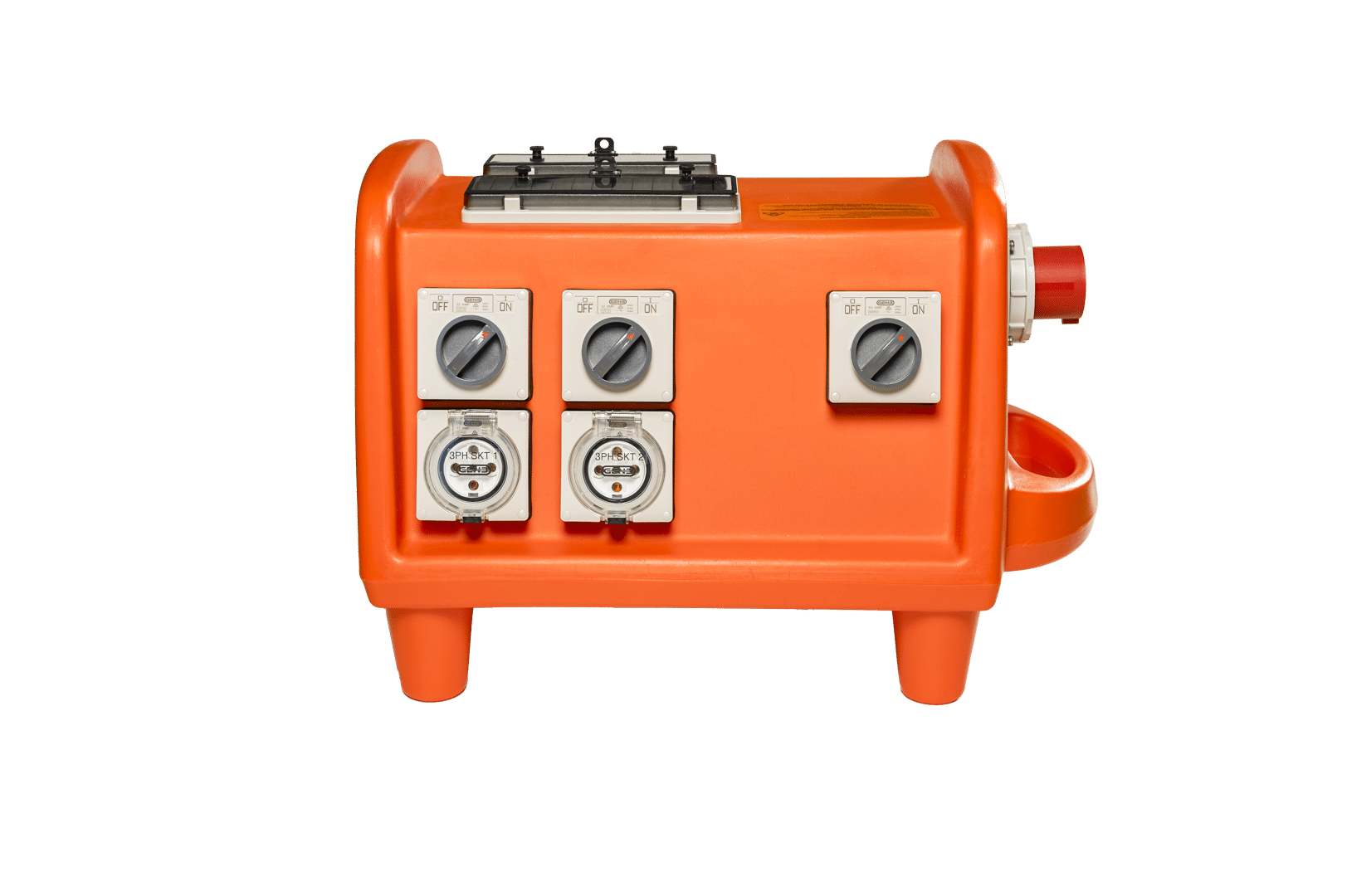

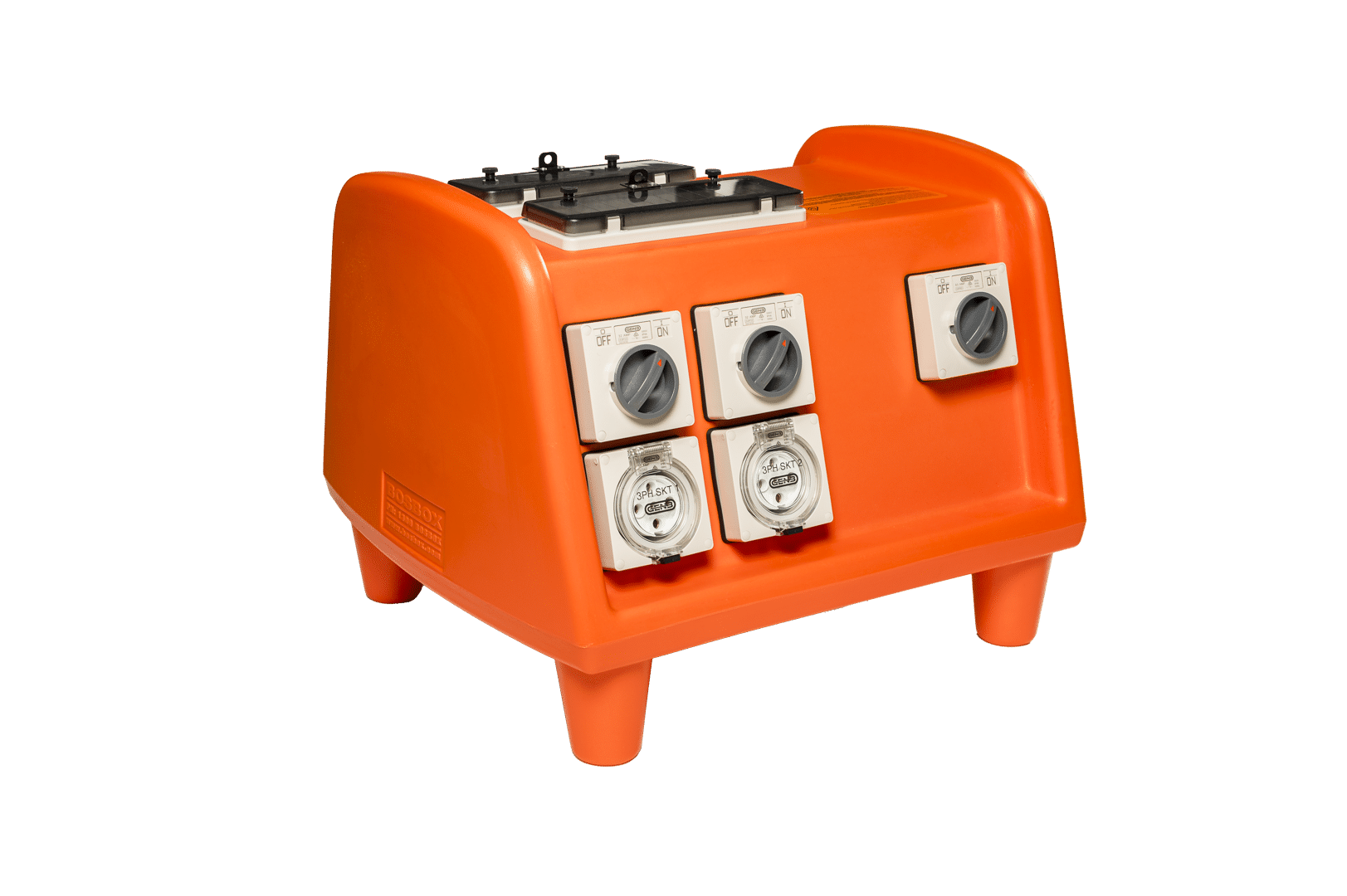

SIDE B

  • 63A 4 pole main switch
  • 2 x 32A 5 pin switched IP66 outlets

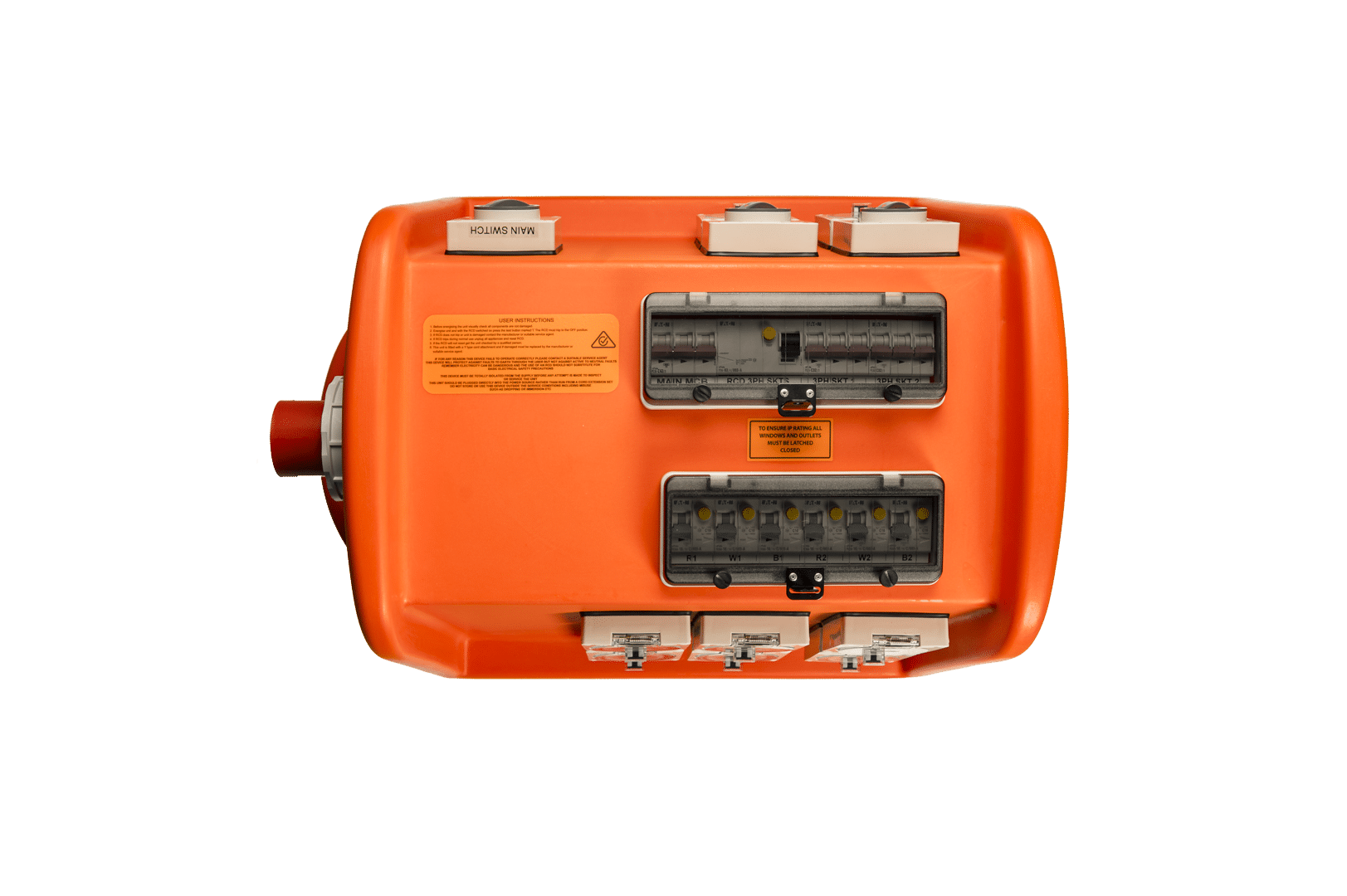

TOP

  • 1 x 63A 3 pole main circuit breaker
  • 1 x 63A 4 pole RCD (for 32amp outlets)
  • 2 x 32A 3 pole circuit breakers (for 32A outlets)
  • 6 x 16A RCBOs (for 15A outlets)

FEATURES

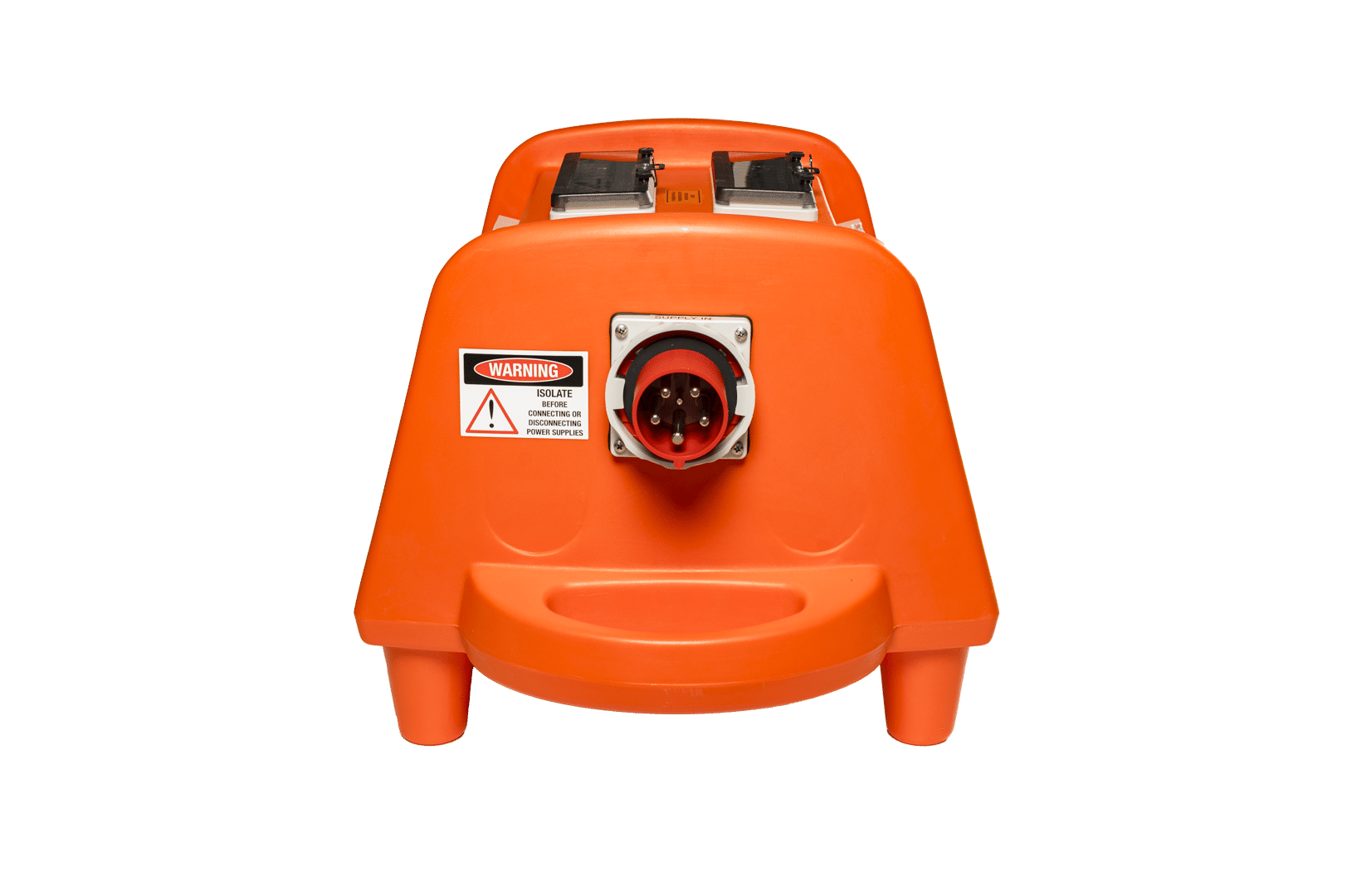

  • 63A 5 pin Ceeform inlet
  •  Available at extra cost:
    – Extension socket to suit inlet

Additional information

Weight 20 kg
Dimensions 70 × 53 × 46 cm
Inlet Voltage

415V

Inlet Current

63A

Outlet Voltage(s)

415V, 240V

Outlet Current(s)

32A, 15A
