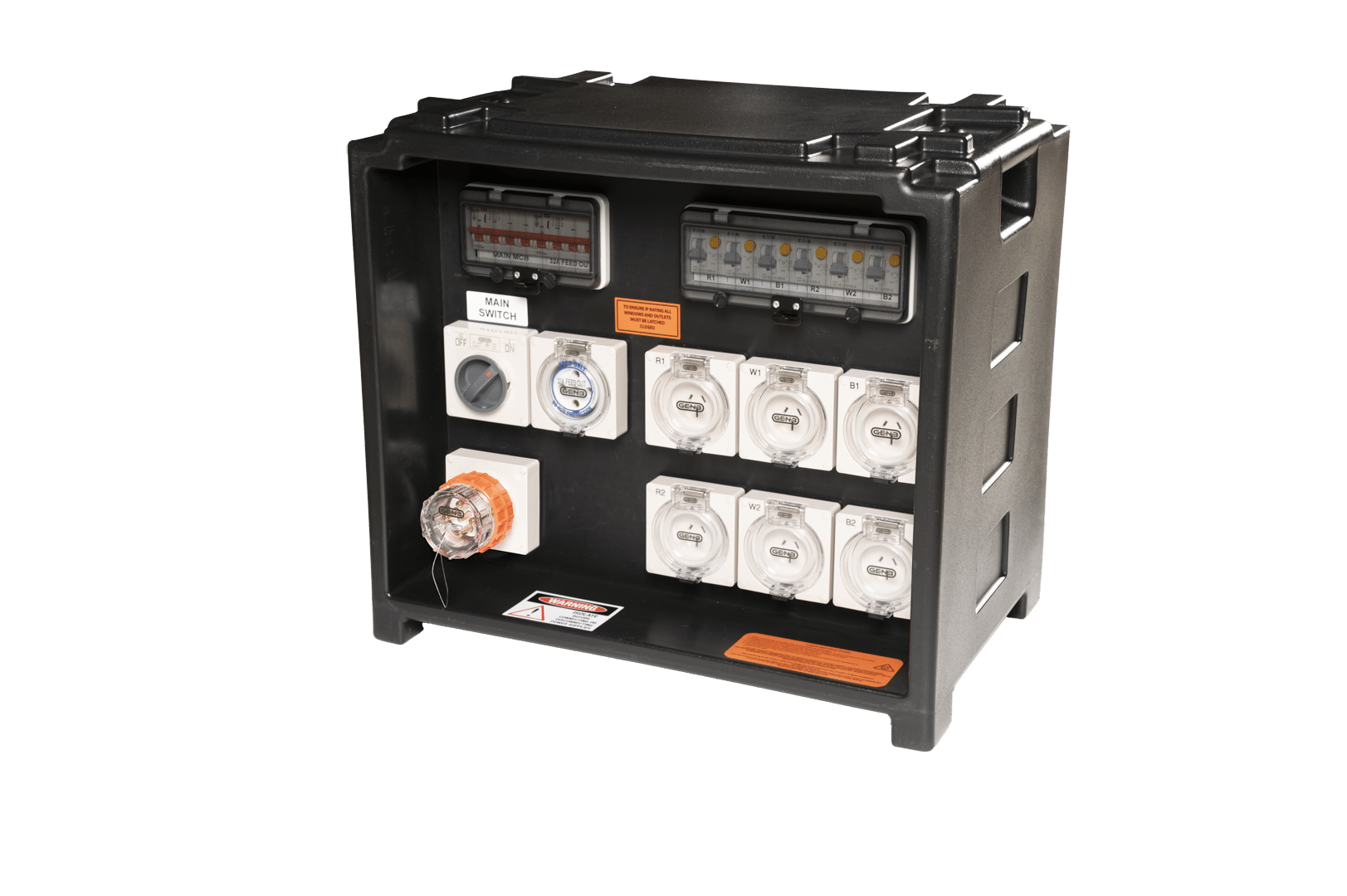

STACKER32L-56

Description

In the entertainment industry, no two gigs are the same. That’s why our stackable range are so popular, because you can mix and match them to meet the unique needs of your event or venue. With 32A and 63A versions in a range of popular configurations, the Bosbox stackable range can grow with your needs. We can also customise a stackable unit to meet your exact requirements!

With all outlets and breakers on the front of the unit they can be put up beside a wall and out of the way.

FRONT

  • 1 x 32A 5 pin 415V IP66 appliance inlet
  • 1 x 63A 4 pole main switch
  • 1 x 32A 4 pole main c/breaker
  • 1 x 32A 5 pin 415V IP66 outlet (feed out no rcd protection)
  • 1 x 32A 4 pole c/breaker (for 32A feed out)
  • 6 x 15A 240V auto switched IP66 outlets
  • 6 x 16A RCBO’s (for 15A outlets)

BACK

  • Blank

Additional information

Weight 25 kg
Dimensions 60 × 40 × 54 cm
Inlet Voltage

415V

Inlet Current

32A

Outlet Voltage(s)

415V, 240V

Outlet Current(s)

32A, 15A
